MatmulAllReduce

算子基础信息

表1 算子信息

算子名称

MatmulAllReduce

torch_npu api接口

torch_npu.npu_mm_all_reduce_base(x1, x2, group, reduce_op, bias, comm_turn)

支持的torch_npu版本

2.1.0, 2.4.0

支持的芯片类型

Atlas A2 训练系列产品

支持的数据类型

支持的输入和输出数据类型有差异，详细请参考《API 参考》中的“torch_npu.npu_mm_all_reduce_base”章节的“参数说明”

算子IR及torch_npu接口参数

算子IR：
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
REG_OP(MatmulAllReduce)
    .INPUT(x1, TensorType({DT_FLOAT16, DT_BF16, DT_INT8}))
    .INPUT(x2, TensorType({DT_FLOAT16, DT_BF16, DT_INT8, DT_INT4}))
    .OPTIONAL_INPUT(bias, TensorType({DT_FLOAT16, DT_BF16, DT_INT32}))
    .OPTIONAL_INPUT(x3, TensorType({DT_FLOAT16, DT_BF16}))
    .OPTIONAL_INPUT(antiquant_scale, TensorType({DT_FLOAT16, DT_BF16}))
    .OPTIONAL_INPUT(antiquant_offset, TensorType({DT_FLOAT16, DT_BF16}))
    .OPTIONAL_INPUT(dequant_scale, TensorType({DT_FLOAT16, DT_BF16, DT_UINT64, DT_INT64, DT_FLOAT}))
    .OPTIONAL_INPUT(pertoken_scale, TensorType({DT_FLOAT}))
    .OPTIONAL_INPUT(comm_quant_scale_1, TensorType({DT_FLOAT16, DT_BF16}))
    .OPTIONAL_INPUT(comm_quant_scale_2, TensorType({DT_FLOAT16, DT_BF16}))
    .OUTPUT(y, TensorType({DT_FLOAT16, DT_BF16}))
    .REQUIRED_ATTR(group, String)
    .ATTR(reduce_op, String, "sum")
    .ATTR(is_trans_a, Bool, false)
    .ATTR(is_trans_b, Bool, false)
    .ATTR(comm_turn, Int, 0)
    .ATTR(antiquant_group_size, Int, 0)
    .OP_END_FACTORY_REG(MatmulAllReduce)

torch_npu接口：
1
npu_mm_all_reduce_base(Tensor x1, Tensor x2, str hcom, *, str reduce_op='sum', Tensor? bias=None, Tensor? antiquant_scale=None, Tensor? antiquant_offset=None, Tensor? x3=None, Tensor? dequant_scale=None Tensor? pertoken_scale=None, Tensor? comm_quant_scale_1=None, Tensor? comm_quant_scale_2=None, int comm_turn=0, int antiquant_group_size=0) -> Tensor

torch_npu接口中的问号表示这个输入参数是可选的。

参数说明、输出说明和约束说明具体请参考《API 参考》中的“torch_npu.npu_mm_all_reduce_base”章节。

模型中替换代码及算子计算逻辑

当前仅展示非量化场景替换逻辑，全量化/伪量化场景请参考《API 参考》中的“torch_npu.npu_mm_all_reduce_base”章节的“调用示例”。

模型中替换代码：
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
import torch.distributed as dist

world_size = 8
rank = 8
master_ip = '127.0.0.1'
master_port = '50001'
m = 64
k = 512
n = 128
input_shape = [m,k]
weight_shape = [k,n]

torch_npu.npu.set_device(rank)
init_method = 'tcp://'
init_method += master_ip + ':' + master_port
dist.init_process_group(backend="hccl", rank=rank, world_size=world_size, init_method=init_method)
if dist.is_available():
    from torch.distributed.distributed_c10d import _get_default_group, ReduceOp
    default_pg = _get_default_group()

world_size = torch.distributed.get_world_size(default_pg)
if torch.__version__ > '2.0.1':
    hcomm_info = default_pg._get_backend(torch.device("npu")).get_hccl_comm_name(rank)
else:
    hcomm_info = default_pg.get_hccl_comm_name(rank)

weight = torch.randn(weight_shape, dtype=dtype).npu()
input = torch.randn(input_shape, dtype=dtype).npu()

output = torch.matmul(input, weight)
dist.all_reduce(output,op=ReduceOp.SUM)
其中output替换为：
1
output = torch_npu.npu_mm_all_reduce_base(input, weight, hcomm_info, reduce_op="sum", comm_turn=0)

算子替换的模型中小算子

MatMul/hcom_allReduce

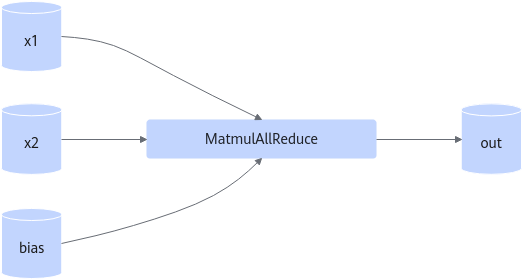

图1 计算图

使用限制

当前仅支持Atlas A2 训练系列产品TP切分场景

已支持模型典型case

GPT3 65B
