单卡场景样例
模块和参数设置
引入所需的模块，设置供用户自定义的参数。
import argparse
import os
import time
import torch
import torch_npu
import torch.nn.parallel
import torch.optim
import torch.utils.data
import torch.utils.data.distributed
import torchvision.transforms as transforms
import torchvision.datasets as datasets
import torchvision.models as models
from apex import amp # 导入amp模块
model_names = sorted(name for name in models.__dict__
if name.islower() and not name.startswith("__")
and callable(models.__dict__[name]))
def parse_args():
""" 用户自定义数据集路径、模型路径 """
parser = argparse.ArgumentParser(description='PyTorch ImageNet Inferring')
parser.add_argument('--data', metavar='DIR', default="/data/imagenet",
help='path to dataset')
parser.add_argument('-a', '--arch', metavar='ARCH', default='resnet50',
choices=model_names,
help='model architecture: ' +
' | '.join(model_names) +
' (default: resnet18)')
parser.add_argument('-b', '--batch_size', default=512, type=int,
metavar='N',
help='mini-batch size (default: 256), this is the total '
'batch size of all GPUs on the current node when '
'using Data Parallel or Distributed Data Parallel')
parser.add_argument('--resume', default='', type=str, metavar='PATH',
help='path to latest checkpoint (default: none)')
parser.add_argument('--pretrained', dest='pretrained', action='store_true',
help='use pre-trained model')
parser.add_argument('--npu', default=None, type=int,
help='NPU id to use.')
parser.add_argument('-j', '--workers', default=32, type=int, metavar='N',
help='number of data loading workers (default: 32)')
parser.add_argument('--lr', '--learning_rate', default=0.1, type=float,
metavar='LR', help='initial learning rate', dest='lr')
parser.add_argument('--wd', '--weight_decay', default=1e-4, type=float,
metavar='W', help='weight decay (default: 1e-4)',
dest='weight_decay')
args, unknown_args = parser.parse_known_args()
if len(unknown_args) > 0:
for bad_arg in unknown_args:
print("ERROR: Unknown command line arg: %s" % bad_arg)
raise ValueError("Invalid command line arg(s)")
return args
......
主函数
设置主函数入口。
......
def main():
args = parse_args()
if args.npu is None:
args.npu = 0
global CALCULATE_DEVICE
CALCULATE_DEVICE = "npu:{}".format(args.npu)
torch_npu.npu.set_device(CALCULATE_DEVICE)
print("use ", CALCULATE_DEVICE)
main_worker(args.npu, args)
......
创建模型
在main_worker中创建模型，设置device和优化器。
......
def main_worker(npu, args):
global best_acc1
args.npu = npu
print("=> creating model '{}'".format(args.arch))
model = models.__dict__[args.arch](zero_init_residual=True)
# 将模型数据复制到昇腾AI处理器中
model = model.to(CALCULATE_DEVICE)
optimizer = torch.optim.SGD([
{'params': [param for name, param in model.named_parameters() if name[-4:] == 'bias'], 'weight_decay': 0.0},
{'params': [param for name, param in model.named_parameters() if name[-4:] != 'bias'],
'weight_decay': args.weight_decay}],
args.lr)
......
使能混合精度
在main_worker中初始化混合精度模型，使用后可加速运算，但结果的准确率可能会轻微降低。可根据实际场景选择使用。
......
model, optimizer = amp.initialize(model, optimizer, opt_level="O2", loss_scale=1024, verbosity=1)
加载模型参数
在main_worker中从模型文件中恢复训练好的模型参数并加载。
......
if os.path.isfile(args.resume):
print("=> loading checkpoint '{}'".format(args.resume))
checkpoint = torch.load(args.resume)
best_acc1 = checkpoint['best_acc1']
best_acc1 = best_acc1.to("npu:{}".format(args.npu))
model.load_state_dict(checkpoint['state_dict'])
print("=> loaded checkpoint '{}' ".format(args.resume))
else:
print("=> no checkpoint found at '{}'".format(args.resume))
......
初始化数据集
在main_worker中对图像数据进行加载与预处理。
......
valdir = os.path.join(args.data, 'val')
normalize = transforms.Normalize(mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225])
val_loader = torch.utils.data.DataLoader(
datasets.ImageFolder(valdir, transforms.Compose([
transforms.Resize(256),
transforms.CenterCrop(224),
transforms.ToTensor(),
normalize,
])),
batch_size=args.batch_size, shuffle=True,
num_workers=args.workers, pin_memory=True)
......
运行推理
在main_worker中运行推理。
......
validate(val_loader, model, args)
在线推理
在线推理的实现代码如下。
......
def validate(val_loader, model, args):
batch_time = AverageMeter('Time', ':6.3f')
top1 = AverageMeter('Acc@1', ':6.2f')
top5 = AverageMeter('Acc@5', ':6.2f')
progress = ProgressMeter(
len(val_loader),
[batch_time, top1, top5],
prefix='Test: ')
# =========================================================================
# 切换到推理模式
# =========================================================================
model.eval()
# =========================================================================
# 在 torch.no_grad():分支下执行模型正向计算
# =========================================================================
with torch.no_grad():
end = time.time()
for i, (images, target) in enumerate(val_loader):
# 将图像数据置于NPU中
images = images.to(CALCULATE_DEVICE, non_blocking=True)
target = target.to(torch.int32).to(CALCULATE_DEVICE, non_blocking=True)
# 计算输出
output = model(images)
# 统计结果精度
acc1, acc5 = accuracy(output, target, topk=(1, 5))
top1.update(acc1[0], images.size(0))
top5.update(acc5[0], images.size(0))
# 测量运行时间
batch_time.update(time.time() - end)
end = time.time()
# 打印推理运算过程日志
progress.display(i)
print(' * Acc@1 {top1.avg:.3f} Acc@5 {top5.avg:.3f}'.format(top1=top1, top5=top5))
return top1.avg
class AverageMeter(object):
"""计算并存储平均值和当前值"""
def __init__(self, name, fmt=':f'):
self.name = name
self.fmt = fmt
self.reset()
self.start_count_index = 10
def reset(self):
self.val = 0
self.avg = 0
self.sum = 0
self.count = 0
def update(self, val, n=1):
if self.count == 0:
self.batchsize = n
self.val = val
self.count += n
if self.count > (self.start_count_index * self.batchsize):
self.sum += val * n
self.avg = self.sum / (self.count - self.start_count_index * self.batchsize)
def __str__(self):
fmtstr = '{name} {val' + self.fmt + '} ({avg' + self.fmt + '})'
return fmtstr.format(**self.__dict__)
class ProgressMeter(object):
"""记录模型运算过程信息"""
def __init__(self, num_batches, meters, prefix=""):
self.batch_fmtstr = self._get_batch_fmtstr(num_batches)
self.meters = meters
self.prefix = prefix
def display(self, batch):
entries = [self.prefix + self.batch_fmtstr.format(batch)]
entries += [str(meter) for meter in self.meters]
print('\t'.join(entries))
def _get_batch_fmtstr(self, num_batches):
num_digits = len(str(num_batches // 1))
fmt = '{:' + str(num_digits) + 'd}'
return '[' + fmt + '/' + fmt.format(num_batches) + ']'
def accuracy(output, target, topk=(1,)):
"""根据指定值k，计算k个顶部预测的精度"""
with torch.no_grad():
maxk = max(topk)
batch_size = target.size(0)
_, pred = output.topk(maxk, 1, True, True)
pred = pred.t()
correct = pred.eq(target.view(1, -1).expand_as(pred))
res = []
for k in topk:
correct_k = correct[:k].view(-1).float().sum(0, keepdim=True)
res.append(correct_k.mul_(100.0 / batch_size))
return res
if __name__ == '__main__':
main()
推理完成

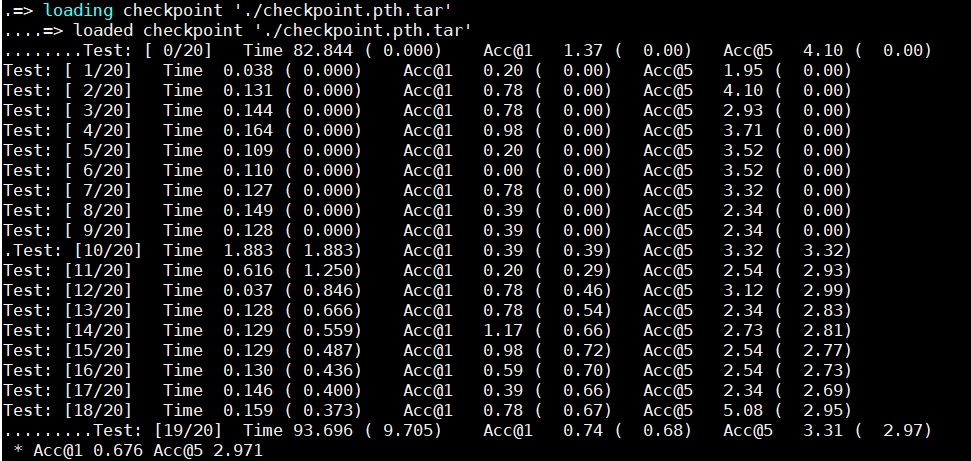

当出现推理结果精度的回显时，说明推理完成。样例回显截图如下。
